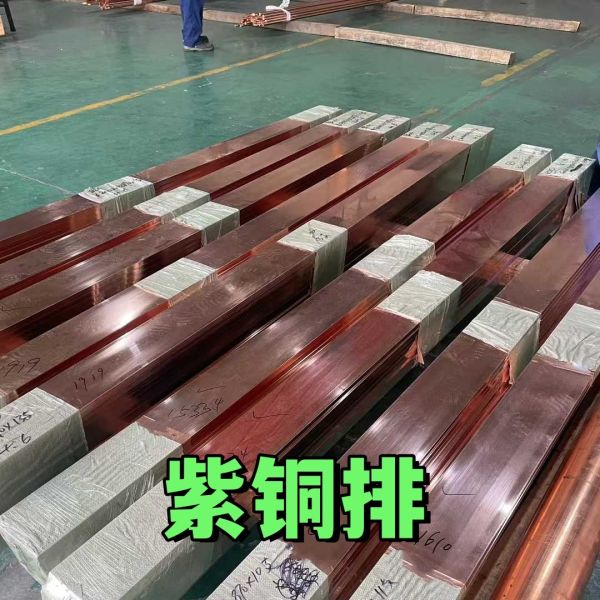

C11000 99.95% Pure Busbar Copper Square Flat Rod Square Flat Copper Bars

Name: C11000 9995 Pure Busbar Copper Square Flat Rod Square Flat Copper Bars
Brand: TSING SHAN
Price: 8.5 USD

Wholesale C11000 99.95% Pure Busbar Copper Square Flat Rod Square Flat Copper Bars from china suppliers

Brand Name : TSING SHAN

Model Number : UNS C11000

Certification : SGS ISO MTC

Place of Origin : China

MOQ : 10KGS

Price : 8.5-12.5 USD/KG

Payment Terms : L/C, T/T

Supply Ability : 50000KGS

Delivery Time : 7 Days

Packaging Details : Wooden Box

Model NO : UNS10100/10200

Transport Package : Standard Seaworthy Package or as Required

Standard : ASTM C11000

Width : 60-1000MM

Length : 2000-12000mm

Sample : Available

Contact Now

Pure Copper Rod For Electric C11000 Electrical 99.9% Conductor Copper Flat Bar

Product Description

Product name	C11000 pure Copper flat bar For Conductor / Pure Flat Copper Bus Bar
	C11000,C10100,C12200,H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200,C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561 , CuZn30, CuZn32, CuZn35, CuZn37, CuZn40 ,TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1,QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1 etc.
Size	Round Bar: 6mm - 200mm
	Square Bar: 4x4mm - 200x200mm
	Hex Bar: 8x8mm - 100x100mm
	Flat Bar: 20x2mm - 200x20mm
Length	2m,3m,5.8m,6m, or as required.
Processing	Extrusion/cold drawn
Temper	1/4 Hard, 1/2 Hard, 3/4 Hard, Hard, Soft
Surface finish	Mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.

High Ductility oxygen free copper for electrical equipment
Copper factory, more than 12 years manufacture experience, attained ISO9001, work on OEM and ODM projects..

1. Introduction of the Earthing copper strip tape

Pure copper strip is soft and malleable; a freshly exposed surface has a reddish-orange color. It is used as a conductor of heat and electricity, as It has excellent electrical conductivity, thermal conductivity, corrosion resistance , weather resistance and processing properties, can be welded and soldered.

2. Grade and temper for Earthing copper strip tape

Grade: Cu-ETP, JIS-C1100, ASTM-C11000, CDA110, GB- T2 ,BS-C102
Temper: O, 1/4H, 1/2H, H, EH

3. Chemical composition of Earthing copper strip tape

Cu+Ag:≥99.90
Sn :≤0.002
Zn:≤0.005
Pb:≤0.005
Ni:≤0.005
Fe:≤0.005
Sb :≤0.002
S :≤0.005
As :≤0.002
Bi:≤0.001
O:≤0.06
Impurities:≤0.1

4. Dimension and tolerance of Earthing copper strip tape

Width	Thickness
	≤1.0		>1.0~1.5		>1.5~2.5
	Thickness tolerance / ±
	Ordinary Level	Ordinary Level	Ordinary Level	Ordinary Level	Ordinary Level	Ordinary Level
≤100	0.2	0.10	0.3	0.20	0.4	0.25
>100~300	0.3	0.15	0.4	0.25	0.5	0.30
>300~600	0.5	0.30	0.6	0.40	0.6	0.50
>600~1000	0.8	0.60	0.8	0.70	0.8	-

5. Mechanical properties for Earthing copper strip tape

Grade	Temper	Thickness /mm	Tensile strength	Elongation (%)	Vickers hardness HV
Grade	Temper	Thickness /mm	(MPa)	Elongation (%)	Vickers hardness HV
T2 ,T3	M(soft)	≥0.2	≥195	≥30	≤70
TU1,TU2	Y4(1/4H)		215~275	≥25	60~90
TP1,TP2	Y2(1/2H)		245~345	≥8	80~110
	Y(H)		295~380	≥3	90~120
	T(HH)		≥350	-	≥110

6. Application of Earthing copper strip tape

Pure copper strip is often used in related applications, like transformer, busbar, electronic assembly. Electrical appliance, connectors, tools and molds, construction, aviation, military, decoration and so on.

Oxygen Free High Quality C10200 Copper Sheet for Capacitor

Copper Sheet, made of pure copper or copper alloy in various shapes including rods,wires, plates, strips,tubes, foils,ect.,collectively referred to as copper.
Copper materials include copper plates, copper rods,copper tubes,copper strips,copper wires,copper bars,copper materials.
C10200 pure copper plate, as a high-purity copper material, is widely used in the power industry. It has excellent conductivity and thermal conductivity, which can meet the requirements of high pressure and high temperature. Therefore, it is widely used in the field of power equipment manufacturing.

Application scenarios copper sheets:
1) Kitchenware, food and chemical products processing and storage devices;
2) Aircraft fuel tanks, oil pipe, rivets, wire;
3) Cans cover, car body panels, steering plates, stiffeners, brackets and other components;
4) Manufacturing trucks, tower building, ship, train, furniture, machinery parts, precision machining with the tubes, rods, shaped, sheet metal.

C11000 99.95% Pure Busbar Copper Square Flat Rod Square Flat Copper Bars

1. Q: Do you provide sample service?
A: Yes, we only provide samples and ask for one piece at a time. The freight should be borne by you.

2. Q: Do you support customized services?
A: Yes, we can customize the size and logo according to your needs. Please consult the customer service for the specific minimum order quantity.

3. Q: How is the Design & Engineering?
A: Experienced and skilled team of designers including CAD designers and 3D designers has the capacity to deliver outstanding designs for your project. If you require more complex engineering of structures such as overhead transmission and distribution lines design,we can also provide this service also designer fee .

4. Q: What's the payment term?
A: We accept T/T, L/C, West Union.

5. Q: What's the delivery time?
A: Usually within 7-15 days according to quantities

6. Q: What's the standard of package?
A: Export standard package or special package as the requirement of customers.

7. Q: What kind of product quality your factory offer?
A: Our products with both excellent quality and competitive price. And we offer free sample for your reference.

8.Q: What's the standard of package?
A: We usually use wooden pallets or Iron racks for packing, 10, 20, 50 peices/bundle.

8. Q: What kind of certificate you have?
A: We have ISO9001:2008/ ROHS/UL
