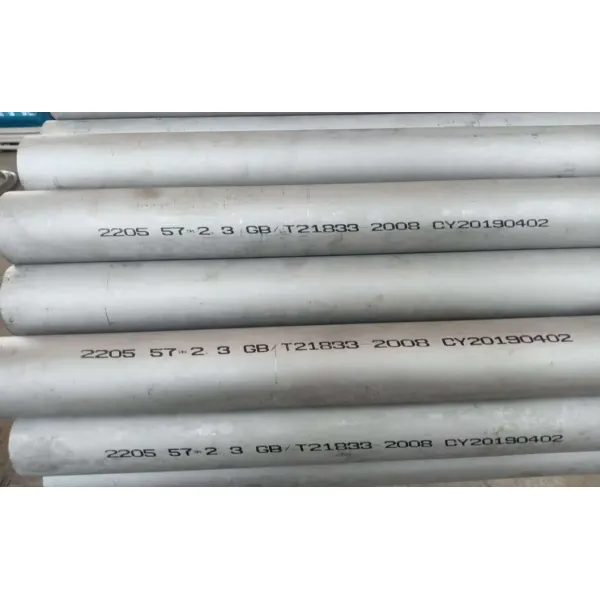

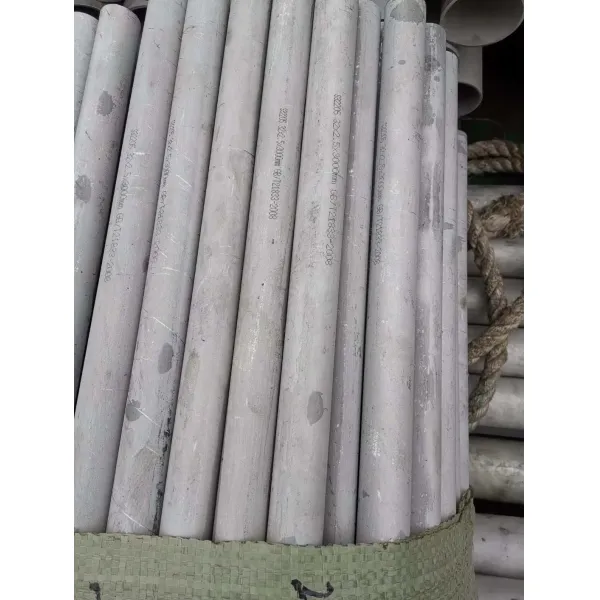

Duplex Stainless Steel Pipe S31803 Pipes
Duplex Steel 2205 Seamless Tube is a nitrogen-enhanced duplex stainless steel specifically engineered to address common corrosion issues encountered with 300 series stainless steels. The term "duplex" refers to a family of stainless steels that combine both austenitic and ferritic microstructures. The composition of 2205 duplex stainless steel features austenite pools surrounded by a continuous ferrite phase. In the annealed condition, 2205 contains approximately 40-50% ferrite. Often referred to as the workhorse grade, 2205 is the most widely used grade within the duplex family of stainless steels.
The advantage of this duplex structure lies in its combination of beneficial characteristics from both ferritic alloys (stress corrosion cracking resistance and high strength) and austenitic alloys (ease of fabrication and corrosion resistance).
Use of 2205 Duplex stainless steel should be limited to temperatures below 600°F. Extended exposure to elevated temperatures can cause embrittlement in 2205 stainless.
Features of Duplex Steel 2205 Seamless Tube
- High resistance to chloride stress corrosion cracking
- Resistance to chloride pitting and crevice corrosion
- Excellent general corrosion resistance
- Superior sulphide stress corrosion resistance
- High strength characteristics
- Excellent weldability and workability
Applications of Duplex Steel 2205 Seamless Tube
- Chemical process vessels, piping and heat exchangers
- Pulp mill digesters, bleach washers, chip pre-steaming vessels
- Food processing equipment
- Oil field piping and heat exchangers
- Vent gas desulfurization equipment
Chemical Composition of Duplex Steel 2205
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
N |
| 2205 (S31803) |
0.03 max |
2.0 max |
1.0 max |
0.03 max |
0.02 max |
min: 21.0
max: 23.0 |
min: 2.5
max: 3.5 |
min: 4.5
max: 6.5 |
min: 0.08
max: 0.20 |
| 2205 (S32205) |
0.03 max |
2.0 max |
1.0 max |
0.03 max |
0.02 max |
min: 22.0
max: 23.0 |
min: 3.0
max: 3.5 |
min: 4.5
max: 6.5 |
min: 0.14
max: 0.20 |
Mechanical Properties of Duplex Steel 2205
| Grade |
Tensile Strength ksi (min) |
Yield Strength 0.2% ksi (min) |
Elongation % |
Hardness (HB) MAX |
| 2205 |
90 |
65 |
25 |
217 |
Physical Properties of Duplex Steel 2205
| Temperature |
Density lbm/in³ |
Electrical Resistivity mWin |
Thermal Conductivity (BTU/hr·ft·°F) |
Heat Capacity BTU/lbm·°F |
Electrical Resistivity (in × 10⁻⁶) |
| at 68°F |
0.278 |
27.6 |
8.7 |
0.112 |
33.5 |
| at 212°F |
|
26.1 |
9.2 |
0.119 |
35.4 |
| at 392°F |
|
25.4 |
9.8 |
0.127 |
37.4 |
| at 572°F |
|
24.9 |
10.4 |
0.134 |
39.4 |
